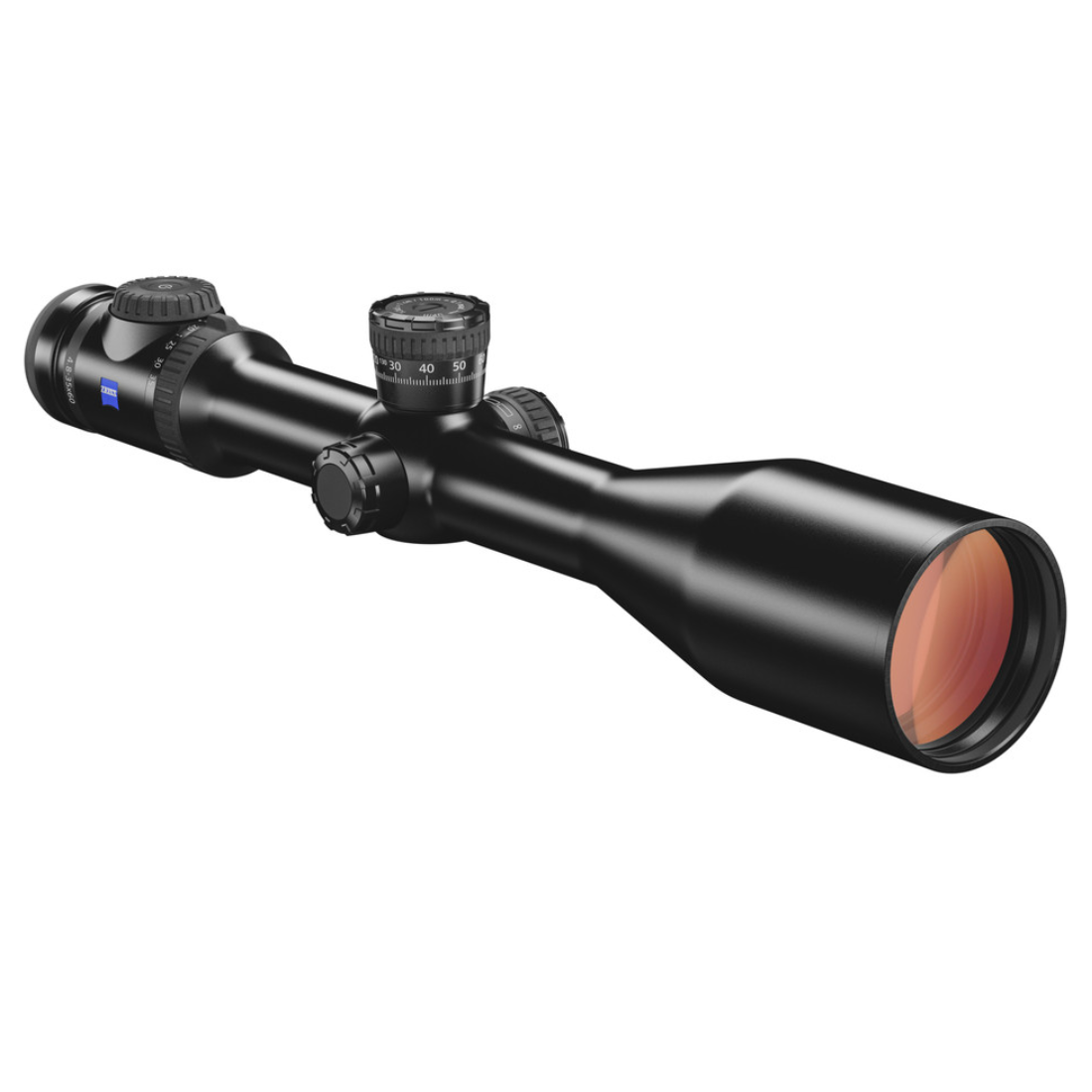

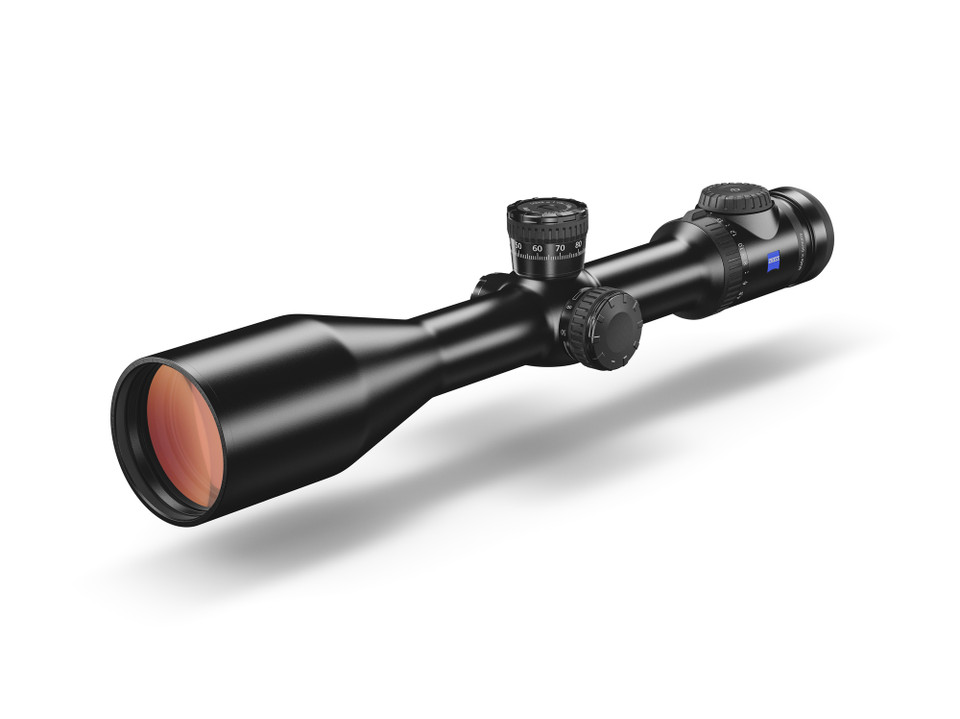

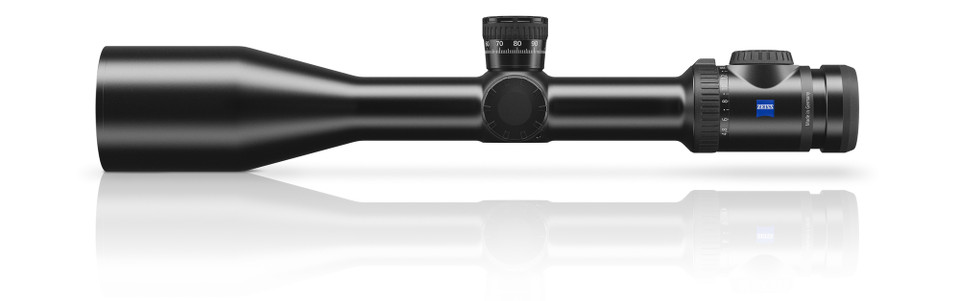

V8 4.835X60 PLEX 60 W/BDC 34MM

Magnification Minimum:4.8

Magnification Maximum35

Objective Tube Diameter (mm):67

Objective Lens Diameter (mm):60

Effective Lens Diameter (mm):48.1 - 60

Exit Pupil Diameter (mm):9.9 - 1.7

Eye Relief (mm):92

Eyepiece Tube Diameter (mm):46

Main Tube Diameter (mm):34

Fogproof Method:Nitrogen Purged

Lens Coating NameLotuTec / ZEISS T*

Lens Type:SCHOTT FL, HT

Waterproof Level:400 mbar

Ballistic Stop:Yes

Click Value (MOA):0.33

Diopter Adjustment Range (dpt):-3.5 / +2

Elevation Adjustment Range (MOA):80

Field of View at 100 yds (ft):25.8 - 3.6

Focal Plane:Second Focal Plane

Operating Temperature:-13F / +122F

Parallax Setting (yds):54 to infinity

Elevation Turret:External

Twilight Factor:13.6 - 45.8

Windage Turret:Capped

Country of Origin:Germany

Battery:CR2032 - Included

Product Length x Width x Height (inches):15.7 x 3.8 x 2.9

Product Weight:35.1 oz.
