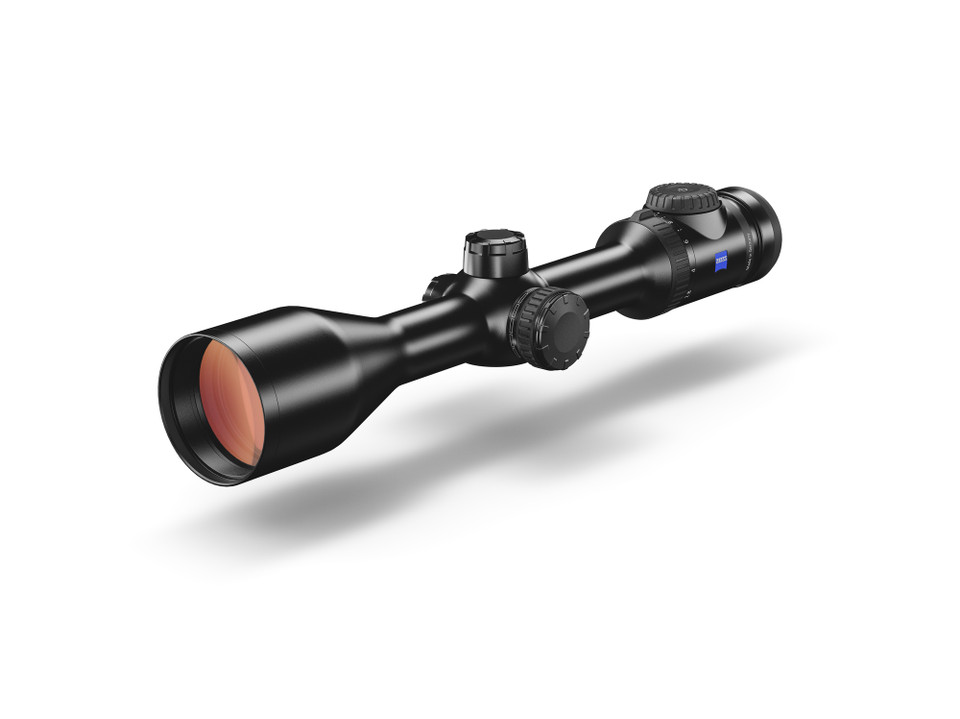

V8 2.820X56 ASV RETICLE 60

Magnification Minimum:2.8

Magnification Maximum:20

Objective Tube Diameter (mm):62

Objective Lens Diameter (mm):56

Effective Lens Diameter (mm):27.5 - 56

Exit Pupil Diameter (mm):9.9 - 2.8

Eye Relief (mm):92

Eyepiece Tube Diameter (mm):46

Main Tube Diameter (mm):30

Fogproof Method:Nitrogen Purged

Lens Coating Name:LotuTec / ZEISS T*

Lens Type:SCHOTT FL, HT

Waterproof Level:400 mbar

Ballistic Stop:Yes

Click Value (MOA):0.33

Diopter Adjustment Range (dpt):-3.5 / +2

Elevation Adjustment Range (MOA):80

Field of View at 100 yds (ft):45.9 - 6.3

Focal Plane:Second Focal Plane

Operating Temperature:-13F / +122F

Parallax Setting (yds):54 to infinity

Elevation Turret:External

Twilight Factor:7.9 - 33.0

Windage Turret:Capped

Country of Origin:Germany

Battery:CR2032 - Included

Product Length x Width x Height (inches):13.8 x 3.8 x 2.9

Product Weight:28.2 oz.
